Description

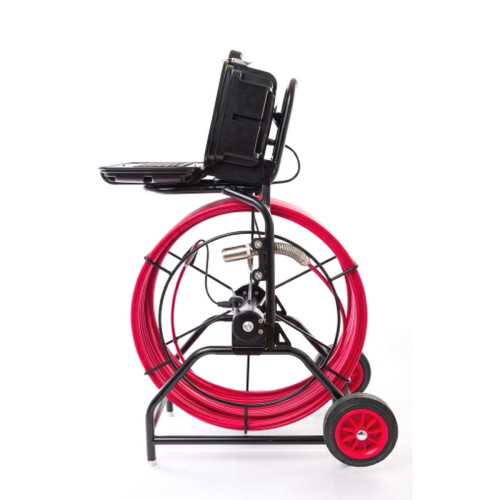

The DX Self-Levelling Drain Inspection Camera System is designed for inspecting 2"-12" (50mm-300mm) diameter pipes and is now available with an HD camera option. This modular, robust and easy-to-transport system features a detachable monitor for convenient charging and on-site viewing. With enhanced user-friendly functionality including a larger TFT screen, brighter LED lighting, increased internal memory, WiFi connectivity and USB storage, the DX delivers efficient, high-quality drain inspections. Supplied with Dart Full Reporting Software, users can complete detailed reports on-site, add multiple sections and observations, and embed still images and video without closing the report. The system also features a multi-frequency sonde selector (512Hz, 640Hz & 33kHz) and is available in 40m, 60m, 80m and 120m cable lengths.
Features
- Suitable for 2"-12" (50mm-300mm) pipe diameters (with suitable skids)
- 10.1" sunlight readable TFT HD display (1280 x 800)
- Gorilla Glass front panel protection
- Self-levelling camera head
- Meter counter (metres/feet)
- Dart Full Reporting Software included
- USB 3.0 recording
- USB memory stick supplied
- 128GB internal memory (records to internal only or both internal & external)
- Integral high power 3 frequency sonde (512Hz / 640Hz / 33kHz)
- WiFi connectivity
- WinCan / Viewline compatible
- Optional 6" Brush Skid & 9-12" Wheeled Skid
- Available in 40m, 60m, 80m & 120m lengths
Monitor Specifications
- 10.1" sunlight readable TFT HD display (1280 x 800)
- Waterproof & impact resistant monitor cover with Gorilla Glass front panel
- Power supply: AC 100/240V - 10-24VDC power unit & internal battery charging
- Internal memory: 128GB (upgradable to 256GB)
- File format: MPEG4 / JPEG (WinCan ProTouch compatible)
- Full Dart Reporting Software
- Full QWERTY keyboard
- Selectable Sonde modes (512Hz / 640Hz / 33kHz)
- Meter counter (metres / feet)
- WiFi connectivity
- Environment rating: IP53 in use & IP54 when closed
- Weight: 5.1Kg
- Dimensions: 31 x 37 x 18cm
Camera Head Specifications
- Stainless steel construction
- High impact sapphire lens
- Diameter: SD - 36mm; HD - 46mm
- Resolution: SD - 450TV lines; HD - 2.1MP (1920 x 1080)
- Self-levelling camera head
- Ultra-bright LED lighting
- Colour SONY CCD sensor
- Environment rating: IP68 to 10 bar
Reel Specifications
- Steel frame construction, zinc plated & powder coated
- Rod diameter: 10.5mm
- Available lengths: 40m, 60m, 80m & 120m
- Environment rating: IP65
- Weight: 40m - 19.1Kg; 60m - 21.3Kg; 80m - 23.5Kg; 120m - 25.7Kg
- Dimensions: 96 x 66 x 46cm
