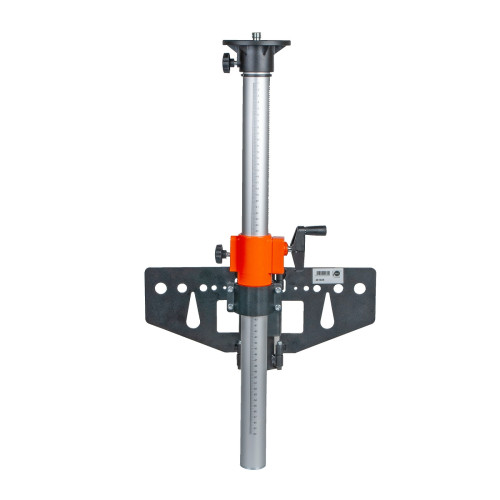

The Nedo Fix-it is a versatile heavy-duty column clamp designed for securely mounting construction lasers and surveying instruments in demanding site environments. Ingeniously engineered for maximum flexibility, it can be fixed to pillars, masonry, wall tops, formwork, scaffolding, steel structures, beams and posts — delivering exceptional stability wherever it is needed.

Movable steel wings ensure secure anchoring on flat surfaces or around corners, while the integrated V-shaped mount allows firm attachment to round supports. With almost unlimited fixing possibilities, the Fix-it provides a reliable mounting solution across a wide range of construction applications.

The turnable aluminium mounting plate features a standard 5/8" connection thread compatible with all construction lasers and surveying instruments. The working height can be precisely adjusted using the indirect crank drive mechanism, similar to an elevating tripod. A 5/8" internal thread at the base allows attachment of a Nedo laser bail for operating rotating lasers close to floor level.

• Column height adjustment: 538 mm, Ø 45 mm
• Mounting plate: Ø 110 mm with 5/8“ connection thread
• Arm length: 240 mm
• Crank drive: indirect
• Wings: movable
• Weight: 4.7 kg

• Heavy-duty column clamp for construction lasers and instruments
• Multiple attachment options: clamp, tie rod, bolted or strapped fixing
• Movable steel wings for secure anchoring on flat surfaces and corners
• Integrated V-shaped mount for round supports
• Turnable aluminium mounting plate with 5/8" thread
• Compatible with construction lasers and surveying instruments
• Height adjustment via indirect crank drive mechanism
• Extremely robust and easy to use

• Bricklaying
• Reinforced concrete construction
• Metalworking
• Carpentry
• General building trades

• The vertical column has 304mm of height adjustment.
• The mount is secured by a 3m long 1000kg load rated ratchet strap.
