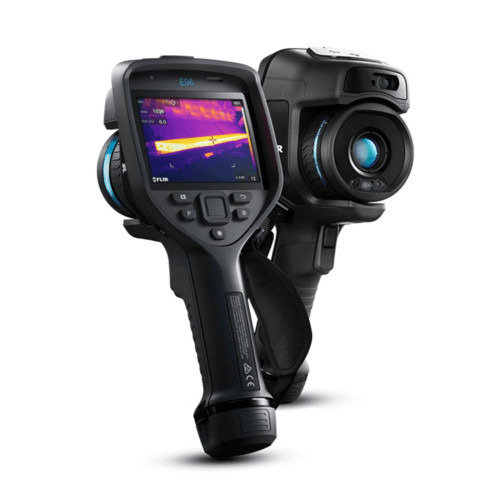

The FLIR E96 is FLIRs first pistol-grip camera with 640 × 480 thermal resolution so inspectors can survey high-voltage, hazardous targets safely and quickly diagnose electrical and mechanical failures. The FLIR E96 offers complete coverage of near and distant targets through a range of lens options. Pair the E96 with a FLIR FlexView™ dual field-of-view lens to instantly switch from wide-area to telephoto scanning in one push of a button. The onboard FLIR Inspection Route runs pre-planned routes to help inspectors stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E96 images directly from the camera to the cloud for easy, secure storage and sharing.

• The highest spec model in FLIR’s Exx series of Advanced Thermal Imaging Cameras
• IR resolution: 640 x 480px (307 200 measurement points)
• 42°, 10mm lens: this wide-angle lens provides a large FOV allowing the user to gather maximum information in a single image; this is ideal when inspecting buildings and roofs
• 1-8x continuous digital zoom
• Seven versions available with different FLIR AutoCal Lenses
• Auto-calibrates to accommodate the attached lens
• Four selectable focus modes: Continuous Laser Distance Meter (LDM), One-Shot LDM, One-Shot Contrast and Manual
• Accuracy: ±2°C/2%
• Temperature ranges: -20°C to +120°C, 0°C to +650°C and 300°C to 1500°C
• Thermal sensitivity: 30mK (at 30°C with a 42° lens)
• UltraMax® Enhancement function: 1.2 megapixels
• MSX® Image Enhancement function
• 5MP visual camera with a fixed focus and LED light
• Three spotmeters (in live mode)
• Three area meters (in live mode)
• Build reports on the camera
• Sketch onto thermal images via the display
• Fast-responding touchscreen display with a 640x480px resolution
• Save images and footage with a GPS tag, voice annotations and/or on-screen text
• Compatible with FLIR’s Thermal Studio Software (included)
• Compatible with FLIR’s Thermal Studio Pro Software (NOT included)
• Save radiometric, IR and visual footage
• Radiometric images are saved as JPEG files
• 8GB SD card
• Stream radiometric, IR and visual footage
• Includes Wi-Fi, Bluetooth, USB and DisplayPort interfaces
• METERLiNK compatibility
• Simple folder and naming structure
• Pistol-shaped design
• Can be operated using a single hand
• Practically placed menu buttons
• Intuitive user interface
• Drop-tested from 3m
• Average battery life: over 2.5 hours
• Inspection Route Camera function: guides the user along a pre-defined inspection route
• The Inspection Route Camera function simplifies reporting and improves inspection efficiency and organisation
• The Inspection Route Camera function is ideal for thermographers who regularly carry out large numbers of inspections
• A high-resolution, adaptable and ergonomic infrared-imaging camera optimised for inspection and troubleshooting applications

• The Selected Lenses
• Battery (2 ea)
• Battery Charger
• Power Supply for Battery Charger
• Printed Documentation
• 8 GB SD Card
• USB 2.0 A to USB Type-C cable,? 1.0 m
• USB Type-C to HDMI adapter,? standard specification UH311
• USB Type-C to USB Type-C cable (USB 2.0 standard)?,? 1.0 m
• Front Protection
• Front Protection Fastener
• Hand Strap
• 2x Hand Strap Brackets (Left and Right)
• Wrist Strap
• Lanyard Strap (Camera)
• Front and Rear Lens Caps
• Lens Cap Strap
• Screws
• Torx T10 Wrench
• Carabiner Hook
• Hard Transport Case
